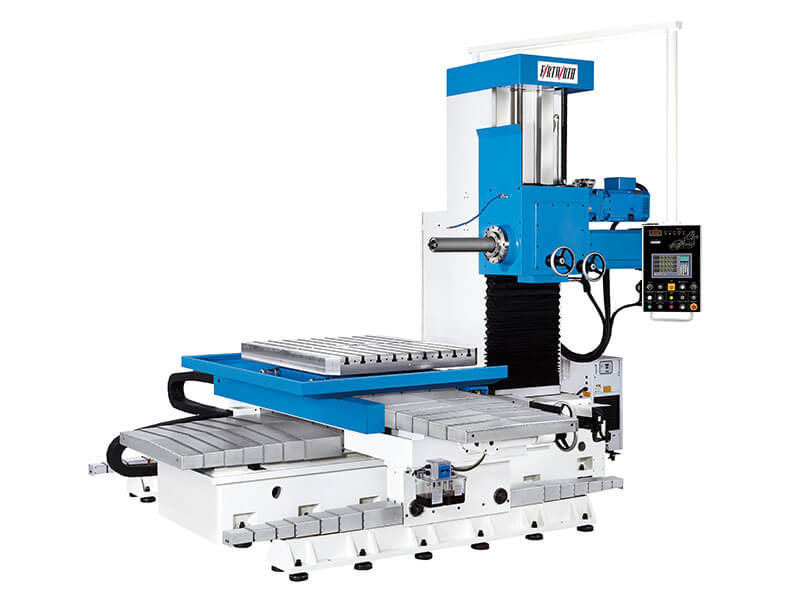

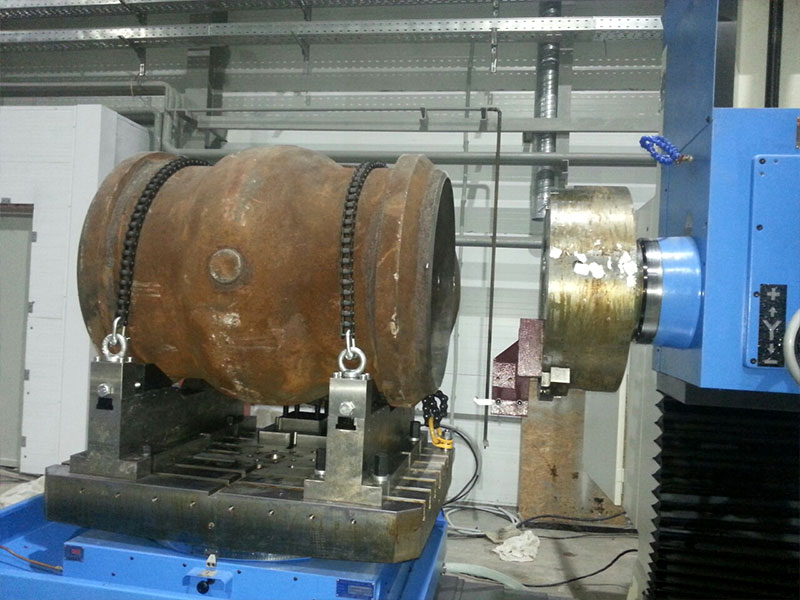

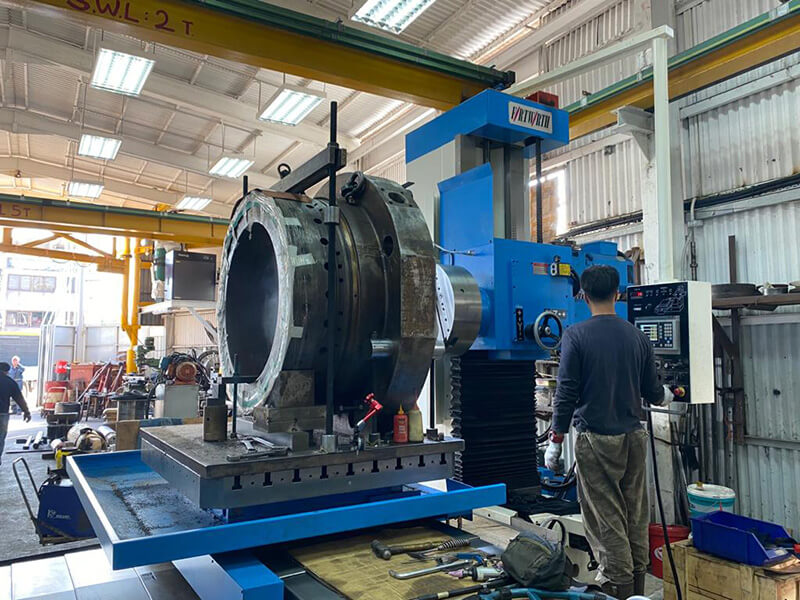

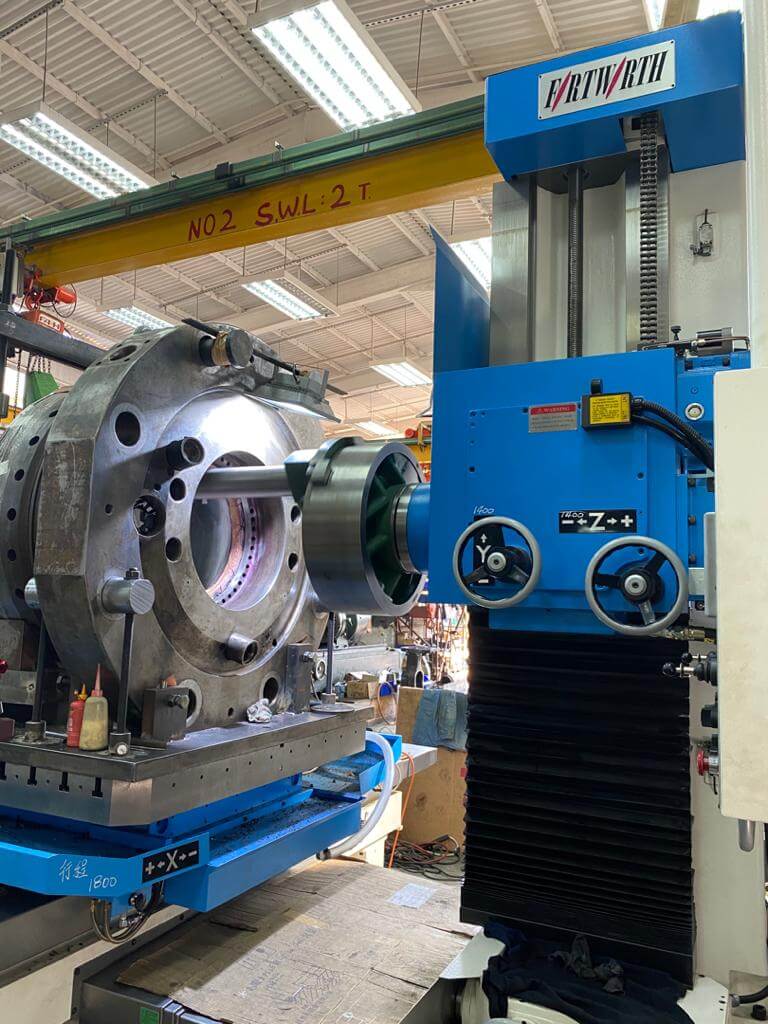

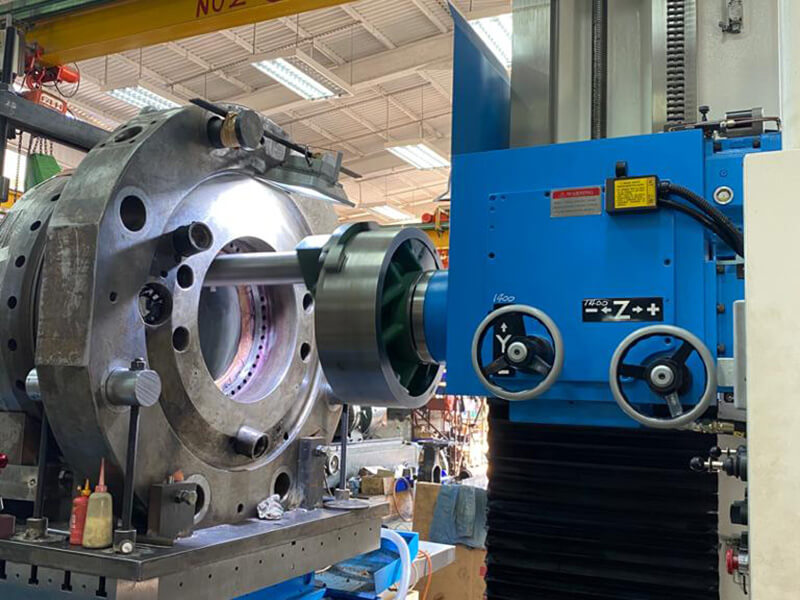

Horizontal Boring & Milling Machine
HBM-110L
Standards
- Automatic lubrication system
- Coolant system
- Air power draw-bar
- X.Z.&W-axis with ballscrew
- Tapping function
- X.Y and W-axis with hydraulic clamp
- Tool box with adjustment tools
- Leveling blocks and bolts
Optional
- Right angle milling head
- Universal milling head
- Spindle extension sleeve
- Digital read out
- Transformer for other than 220/3/60

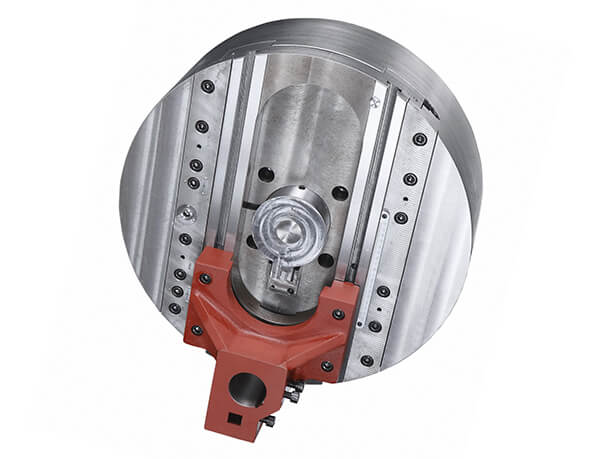

- Facing head
specification All SERIES
| ITEM | UNIT | HBM-110 | HBM-110L | HBM-110FH | |||||
| CAPACITY | |||||||||
| Table travel (X axis) | mm | 1,600 (63 inch) | 1,800 (70-13/16 inch) | 1,800 (70-13/16 inch) | |||||
| Head travel (Y axis) | mm | 1,000 (39-3/8 inch) | 1,400 (55-3/22 inch) | 1,390 (54-3/4 inch) | |||||
| Table travel (W axis) | mm | 1,250 (49-3/16 inch) | 1,400 (55-3/22 inch) | 1,400 (55-3/22 inch) | |||||
| Z axis (Spindle axial) | mm | 400 (15-3/4 inch) | 550 (21-5/8 inch) | 480 (18-9/10 inch) | |||||
| Spindle center to table top | mm | 0~1,000 (0~39-3/8 inch) |
0~1,400 (0~55-3/22 inch) |
0~1,400 (0~55-3/22 inch) |
|||||
| Spindle end to table center | mm | 372~1,622 (16-5/8~63-5/6 inch) |
577~1,977 (22-5/7~77-5/6 inch) |
458~1,858 (18~73-1/7 inch) |
|||||
| TABLE | |||||||||
| Table size overall | mm | 1,000x800 (39-3/8 x 31-1/2 inch) |
1,200x1,400 (47-3/16 ~ 55-3/32 inch) |
1,200x1,400 (47-3/16 ~ 55-3/32 inch) |
|||||
| T slot (Wide x No. x Pitch) | mm | 22H8x7x100 (0.87x7x3-7/8 inch) |
22H8x9x120 (0.87x9x4-5/7 inch) |
22H8x9x120 (0.87x9x4-5/7 inch) |
|||||
| Table indexing (360 degree) |
degree | 1 degree / division | 1 degree / division | 1 degree / division | |||||
| Table load capacity max. | kg | 2,500(5,500 lbs) | 5,000(11,020 lbs) | 5,000(11,020 lbs) | |||||
| SPINDLE HEAD | |||||||||
| Spindle nose | ISO R297 No.50 | ISO R297 No.50 | ISO R297 No.50 | ||||||
| Spindle diameter | mm | 110 | 110 | 110 | |||||
| Spindle speed | rpm | 20 ~ 1,000 | 20 ~ 1,500 | 20 ~ 1,500 | |||||
| FEED / RAPID | |||||||||
| X, Y, W rapid | mm/min | 2,800 (110-1/4 ipm) | 2,800 (110-1/4 ipm) | 2,800 (110-1/4 ipm) | |||||
| Z rapid | mm/min | 1,200 | 1,200 | 1,200 | |||||
| X, Y, W auto feed | mm/min | 3 ~ 950 (1/8~37-3/8 ipm) |
3 ~ 950 (1/8~37-3/8 ipm) |
3 ~ 950 (1/8~37-3/8 ipm) |
|||||
| Z feed | mm/min | 3 ~ 400 | 3 ~ 400 | 3 ~ 400 | |||||
| Change of feeds | Infinitely variable | Infinitely variable | Variable speed | ||||||
| FACING HEAD | |||||||||
| Diameter | mm | 660 | |||||||
| Maximal facing diameter | mm | 940 | |||||||
| Facing slide traverse (U-axis) | mm | -50~150 | |||||||
| Speeds | rpm | (L)10~92 ; (H)38~200 | |||||||
| Facing slide feeds | mm/min | 0.2-400 | |||||||
| MOTORS | |||||||||
| Spindle motor | kW | AC15 | AC15 | AC15 | |||||
| Feed motor for X, Y, W axis (Servo) | kW | 2.9 | 2.9 | 2.9 | |||||
| Feed motor for Z axis (Servo) | kW | 1.3 | 1.3 | 1.3 | |||||
| Lube pump for headstock | kW | AC0.2-4P | Oil cooler | 0.9 | |||||
| Coolant pump | kW | AC 0.12(1/6HP)-2P | AC 0.12(1/6HP)-2P | AC 0.12(1/6HP)-2P | |||||
| Hydraulic pump for axis clamp | kW | AC 1.5(2HP)-4P | AC 1.5(2HP)-4P | AC 1.5(2HP)-4P | |||||
| MACHINE SIZE | |||||||||
| Machine height | mm | 3,175(125 inch) | 3,553(140 inch) | ||||||
| Floor space (Longitudinal x cross) |
mm | 3,874 x 4,373 (152-1/2x172 inch) |
4,644 x 5,400 (182-5/6x212-3/5 inch) |
4,644 x 5,400 (182-5/6x212-3/5 inch) |
|||||
| Net weight (Approx.) | kg | 12,500 (27,560 lbs) | 16,000 (35,270 lbs) | ||||||
| Standard color | - | Blue & white | Blue & white | ||||||
*Design and specifications are subject to change without prior notice.
