Knee Type Vertical & Horizontal Milling Machine

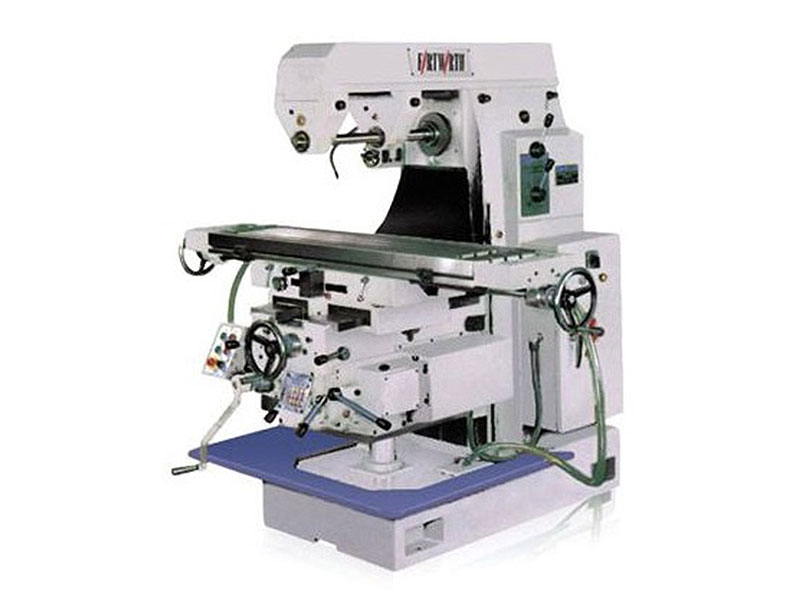

Knee Type Vertical & Horizontal Milling Machine CS-U450
CS-U450

Standards

  • Cutting fluid equipment 1 unit
  • Cutting arbor and sleeve 1 unit
  • Adjustment tools 1 set
  • Tool box 1 set
  • Chip pan 1 pc
  • Draw bar 1 pc
  • Leveling blocks 4 pcs
  • Leveling bolts 4 sets

Optional

  • Digital read out
  • Air power draw bar

specification ALL SERIES

ITEM UNIT CS-G450A CS-G450C CS-H450 CS-U450
TABLE
Working surface
(length x width)		 mm 1,300 x 300
(51-3/16 x 11-13/16 inch)		 1,300 x 300
(51-3/16 x 11-13/16 inch)		 1,300 x 300
(51-3/16 x 11-13/16 inch)		 1,300 x 300
(51-3/16 x 11-13/16 inch)
1,500 x 300
(59 x 11-13/16 inch)
(option)		 1,500 x 300
(59 x 11-13/16 inch)
(option)		 1,500 x 300
(59 x 11-13/16 inch)
(option)		 1,500 x 300
(59 x 11-13/16 inch)
(option)
Travel
(Longitudinal x cross x vertical)		 mm 950 x 320 x 470
(37-3/8 x 12-1/2 x
18-1/2 inch)		 950 x 320 x 470
(37-3/8 x 12-1/2 x
18-1/2 inch)		 950 x 320 x 470
(37-3/8 x 12-1/2 x
18-1/2 inch)		 950 x 320 x 470
(37-3/8 x 12-1/2 x
18-1/2 inch)
1,050 x 320 x 470
(41-5/16 x 12-1/2 x
18-1/2 inch) (option)		 1,050 x 320 x 470
(41-5/16 x 12-1/2 x
18-1/2 inch) (option)

1,050 x 320 x 470
(41-5/16 x 12-1/2 x
18-1/2 inch) (option)

 1,050 x 320 x 470
(41-5/16 x 12-1/2 x
18-1/2 inch) (option)
T slot
(Nominal x no. x pitch)		 mm 16 x 3 x 70
(5/8 x 3 x 2-3/4 inch)		 16 x 3 x 70
(5/8 x 3 x 2-3/4 inch)		 16 x 3 x 70
(5/8 x 3 x 2-3/4 inch)		 16 x 3 x 70
(5/8 x 3 x 2-3/4 inch)
FEEDS 12 STEPS
Longitudinal x cross mm/min 50Hz 11 ~ 517
(7-16 ~ 20-3/8 ipm)		 50Hz 11 ~ 517
(7-16 ~ 20-3/8 ipm)		 11 ~ 517
(7-16 ~ 20-3/8 ipm)		 50Hz 11 ~ 517
(7-16 ~ 20-3/8 ipm)
60Hz 13 ~ 621
(1/2 ~ 24-7/16 ipm)		 60Hz 13 ~ 621
(1/2 ~ 24-7/16 ipm)		 13 ~ 621
(1/2 ~ 24-7/16 ipm)		 60Hz 13 ~ 621
(1/2 ~ 24-7/16 ipm)
Vertical mm/min 50Hz 6 ~263
(1/4 ~ 10-3/8 ipm)		 50Hz 6 ~263
(1/4 ~ 10-3/8 ipm)		 6 ~263
(1/4 ~ 10-3/8 ipm)		 50Hz 6 ~263
(1/4 ~ 10-3/8 ipm)
60Hz 7 ~316
(1/4 ~ 12-7/16 ipm)		 60Hz 7 ~316
(1/4 ~ 12-7/16 ipm)		 7 ~316
(1/4 ~ 12-7/16 ipm)		 60Hz 7 ~316
(1/4 ~ 12-7/16 ipm)
RAPID TRAVERSE
Longitudinal x cross mm/min 50Hz 2,467
(97-1/8 ipm)		 50Hz 2,467
(97-1/8 ipm)		 2,467
(97-1/8 ipm)		 50Hz 2,467
(97-1/8 ipm)
60Hz 2,960
(116-1/2 ipm)		 60Hz 2,960
(116-1/2 ipm)		 2,960
(116-1/2 ipm)		 60Hz 2,960
(116-1/2 ipm)
Vertical mm/min 50Hz 1,267
(49-7/8 ipm)		 50Hz 1,267
(49-7/8 ipm)		 1,267
(49-7/8 ipm)		 50Hz 1,267
(49-7/8 ipm)
60Hz 1,520 (60 ipm) 60Hz 1,520 (60 ipm) 1,520 (60 ipm) 60Hz 1,520 (60 ipm)
Swivel table
(left & right)		 deg (option) (option) (option) 45 deg
VERTICAL SPINDLE
Spindle nose   ISO R297 No. 40 ISO R297 No. 40 - -
Spindle speed rpm 50Hz 70 ~ 2,625;
12 steps		 50Hz 40 ~ 4,000 ;
variable speed		 - -
60Hz 85 ~ 3,150;
12 steps		 60Hz 40 ~ 4,000 ;
variable speed
Distance from spindle end to table mm 130 ~ 600
(5-1/8 ~ 23-5/8 inch)		 130 ~ 600
(5-1/8 ~ 23-5/8 inch)		 - -
Distance from center of
spindle to column		 mm 100 ~ 610
(3-15/16 ~ 24 inch)		 100 ~ 610
(3-15/16 ~ 24 inch)		 - -
Quill feeds mm/rev 0.048, 0.096, 0.192 0.048, 0.096, 0.192 - -
Quill travel mm 130 (5-1/8 inch) 130 (5-1/8 inch) - -
Swiveling angle of head
(left & right)		 deg 45 45 - -
Cross travel ram mm 510 (19-11/16 inch) 510 (19-11/16 inch) - -
Horizontal rotating angle of ram deg 360 360 - -
HORIZONTAL SPINDLE
Spindle nose

ISO R297 No. 40

 ISO R297 No. 40 ISO R297 No. 40 ISO R297 No. 40
Spindle speed rpm 50Hz 36 ~ 1,415 ;
12 steps		 50Hz 45~1,700 50Hz 36 ~ 1,415 ;
12 steps		 50Hz 36 ~ 1,415 ;
12 steps
60Hz 45 ~ 1,700 ;
12 steps		 60Hz 45 ~ 1,700 ;
2 steps
Variable speed		 60Hz 45 ~ 1,700 ;
12 steps		 60Hz 45 ~ 1,700 ;
12 steps
Distance from center of
spindle to overarm		 mm 182 (7-1/8 inch) 182 (7-1/8 inch) 135 (5-1/4 inch) 135 (5-1/4 inch)
Distance from center of
spindle to table		 mm 22 ~ 492
(7/8 ~19-3/8 inch)		 22 ~ 492
(7/8 ~19-3/8 inch)		 22 ~ 492
(7/8 ~19-3/8 inch)		 0 ~ 470
(0 ~18-1/2 inch)
MOTORS
For vertical spindle kW AC 2.2 (3HP)-4P AC 3.7 (5HP)-4P - -
For horizontal spindle kW AC 3.7 (5HP)-4P AC 3.7 (5HP)-4P AC 3.7 (5HP)-4P AC 3.7 (5HP)-4P
For table feed and
rapid traverse		 kW AC 2.2 (3HP)-4P AC 2.2 (3HP)-4P AC 2.2 (3HP)-4P AC 2.2 (3HP)-4P
For cutting fluid pump kW AC 0.1(1/8HP)-2P AC 0.1 (1/8HP)-2P AC 0.1(1/8HP)-2P AC 0.1(1/8HP)-2P
MACHINE SIZE
Machine height mm 2,390 (94 inch) 2,560 (100-3/4 inch) 1,710 (67-5/16 inch) 1,710 (67-5/16 inch)
Floor space
(Longitudinal x cross)		 mm 670 x 1,200
(26-3/8 x 47-1/4 inch)		 670 x 1,200
(26-3/8 x 47-1/4 inch)		 670 x 1,200
(26-3/8 x 47-1/4 inch)		 670 x 1,200
(26-3/8 x 47-1/4 inch)
Net weight
(approx.)		 kg 2,650 (5,830 lbs) 2,650 (5,830 lbs) 2,350 (5,170 lbs) 2,350 (5,170 lbs)
Standard color   Blue & White Blue & White Blue & White Blue & White
*Design and specifications are subject to change without prior notice.
