Bed Type Vertical with Horizontal Boring & Milling Machine

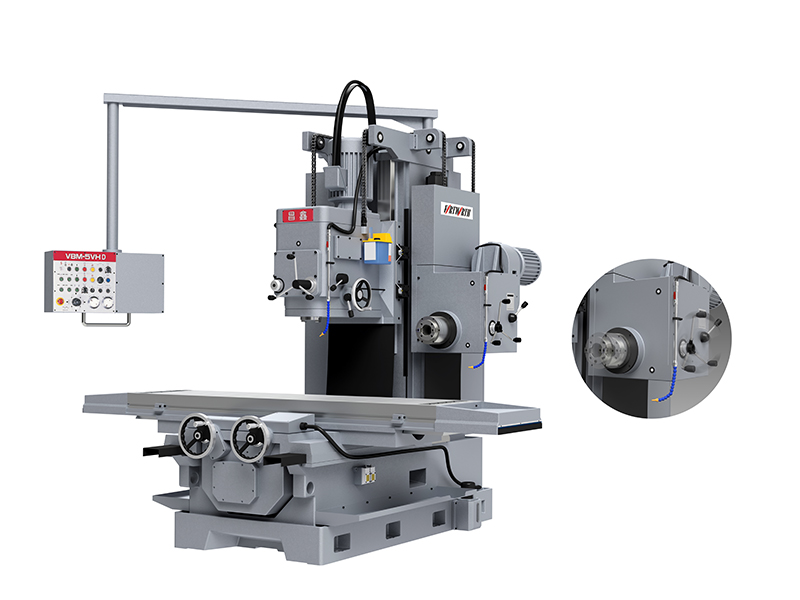

CS-VBM-5VHD

specification ALL SERIES

ITEM	UNIT	CS-VBM-5VHL		CS-VBM-5VHL-L		CS-VBM-8VHL		CS-VBM-8VHL-L		CS-VBM-5VHD
CAPACITY
Table travel (Longitudinal)	mm	1,500 (59 inch)		2,000 (78-3/4 inch)		2,000 (78-3/4 inch)		2,500 (98-7/16 inch)		1500(59 inch)
Table travel (Cross)	mm	600 (23-5/8 inch)		600 (23-5/8 inch)		800 (31-1/2 inch)		800 (31-1/2 inch)		600 (23-5/8 inch)
Vertical spindle head travel (Vertical)	mm	700 (27-9/16 inch)		700 (27-9/16 inch)		700 (27-9/16 inch)		700 (27-9/16 inch)		700 (27-9/16 inch)
Horizontal spindle head travel (Vertical)	mm	650 (25-9/16 inch)		650 (25-9/16 inch)		650 (25-9/16 inch)		650 (25-9/16 inch)		650 (25-9/16 inch)
Vertical spindle nose to table top	mm	100 ~ 800 (3-15/16 ~ 31-1/2 inch)		100 ~ 800 (3-15/16 ~ 31-1/2 inch)		70 ~ 770 (2-3/4 ~ 30-1/4 inch)		70 ~ 770 (2-3/4 ~ 30-1/4 inch)		100 ~ 800 (3-15/16 ~ 31-1/2 inch)
Vertical spindle center to column front	mm	550 (21-5/8 inch)		550 (21-5/8 inch)		800 (31-1/2 inch)		800 (31-1/2 inch)		550 (21-5/8 inch)
Distance between Horizontal & Vertical spindle center	mm	550 (21-5/8 inch)		550 (21-5/8 inch)		610 (24 inch)		610 (24 inch)		558 (21-15/16 inch)
TABLE
Table working area	mm	2,200 x 500 (86-5/8 x 19-11/16 inch)		2,700 x 500 (106-1/4 x 19-11/16 inch)		2,700 x 750 (106-1/4 x 29-1/2 inch)		3,200 x 750 (126 x 29-1/2 inch)		2,200 x 500 (86-5/8 x 19-11/16 inch)
T slot (Wide x No. x Pitch)	mm	18 x 5 x 90 (0.709 x 5 x 3-9/16 inch)		18 x 5 x 90 (0.709 x 5 x 3-9/16 inch)		18 x 5 x 150 (0.709 x 5 x 5-7/8 inch)		18 x 5 x 150 (0.709 x 5 x 5-7/8 inch)		18 x 5 x 90 (0.709 x 5 x 3-9/16 inch)
Table top to floor	mm	870 (34-1/4 inch)		870 (34-1/4 inch)		900 (35-7/16 inch)		900 (35-7/16 inch)		870 (34-1/4 inch)
SPINDLE HEAD
Spindle nose		ISO R297 No.50		ISO R297 No.50		ISO R297 No.50		ISO R297 No.50		ISO R297 No.50
Vertical Spindle speeds	rpm	50Hz	35~1,250	50Hz	35~1,250	Low	45~250	Low	45~250	60Hz	45-1500
		60Hz	45~1,500	60Hz	45~1,500	Hight	250~1,500 / Infinitely variable	Hight	250~1,500 / Infinitely variable
Horizontal spindle speeds	rpm	50Hz	34~1,210	50Hz	34~1,210	40 ~ 1,450 (60Hz) / 12 steps		40 ~ 1,450 (60Hz) / 12 steps		40-1000
		60Hz	40~1,450	60Hz	40~1,450
No. of Vertical spindle speed	steps	12		12		2		2		4
No. of Horizontal spindle speed	steps	12		12		12		12		2
Horizontal spindle quill travel	mm	-		-		-		-		100(3-15/16 inch)
Feeds (Vertical spindle)	mm/rev.	0.05 ~ 0.2 (0.0025 ~ 0.01 ipr)		0.05 ~ 0.2 (0.0025 ~ 0.01 ipr)		3 ~ 300 mm/min (0.12 ~ 11.81 ipm)		3 ~ 300 mm/min (0.12 ~ 11.81 ipm)		0.05 ~ 0.2 (0.0025 ~ 0.01 ipr)
FEED / RAPID
Rapid traverse (Longitudinal & cross)	mm/min	3,300 (129-7/8 ipm)		3,300 (129-7/8 ipm)		3,100 (122 ipm)		3,100 (122 ipm)		3,300 (129-7/8 ipm)(60HZ)
W axis rapid traverse (Vertical)	mm/min	3,800 (150 ipm)		3,800 (150 ipm)		3,800 (150 ipm)		3,800 (150 ipm)		3,800 (150 ipm)(60HZ)
Feed rates (Longitudinal & cross)	mm/min	28 ~ 1,000 (1-1/8 ~ 39-3/8 ipm)		28 ~ 1,000 (1-1/8 ~ 39-3/8 ipm)		28 ~ 1,000 (1-1/8 ~ 39-3/8 ipm)		28 ~ 1,000 (1-1/8 ~ 39-3/8 ipm)		28 ~ 1,000 (1-1/8 ~ 39-3/8 ipm)(60HZ)
Horizontal feed rates (Vertical)	mm/min	28 ~ 1,000 (1-1/8 ~ 39-3/8 ipm)		28 ~ 1,000 (1-1/8 ~ 39-3/8 ipm)		28 ~ 1,000 (1-1/8 ~ 39-3/8 ipm)		28 ~ 1,000 (1-1/8 ~ 39-3/8 ipm)		28 ~ 1,000 (1-1/8 ~ 39-3/8 ipm)(60HZ)
Change of feeds		Infinitely variable		Infinitely variable		Infinitely variable		Infinitely variable		Infinitely variable
MOTORS
Vertical spindle	kW	AC 11 (15HP)-4P		AC 11 (15HP)-4P		AC 11 (15HP)-4P (Inverter motor)		AC 11 (15HP)-4P (Inverter motor)		AC 11 (15HP)-4P
Horizontal spindle	kW	AC 5.5 (7.5HP)-6P		AC 5.5 (7.5HP)-6P		AC 5.5 (7.5HP)-6P		AC 5.5 (7.5HP)-6P		AC 7.5 (10HP)-4P
Feed of X, Y axis	kW	AC 3.5 (4.7HP) Servo motor		AC 3.5 (4.7HP) Servo motor		AC 3.5 (4.7HP) Servo motor		AC 3.5 (4.7HP) Servo motor		AC 3.5 (4.7HP) Servo motor
Feed of Z axis	kW	-		-		AC 1.3 (1.75HP) Servo motor		AC 1.3 (1.75HP) Servo motor		-
Feed of W axis	kW	AC 0.85 (1.14HP) Servo motor		AC 0.85 (1.14HP) Servo motor		AC 0.85 (1.14HP) Servo motor		AC 0.85 (1.14HP) Servo motor		AC 0.85 (1.14HP) Servo motor
Lubrication	W	AC 3.5		AC 3.5		AC 3.5		AC 3.5		AC 3.5
Cutting fluid	kW	AC 0.12 (1/6HP)-2P		AC 0.12 (1/6HP)-2P		AC 0.12 (1/6HP)-2P		AC 0.12 (1/6HP)-2P		AC 0.12 (1/6HP)-2P
MACHINE SIZE
Machine height	mm	2,870 (113 inch)		2,870 (113 inch)		3,198 (126 inch)		3,198 (126 inch)		2,870 (113 inch)
Floor space (Longitudinal x cross)	mm	4,440 x 2,550 (174-7/8 x 100-3/8 inch)		5,690 x 2,550 (224 x 100-3/8 inch)		5,694 x 3,075 (224-3/16 x 121 inch)		6,940 x 3,075 (273-1/4 x 121 inch)		4,440 x 2,500 (174-7/8 x 100-3/8 inch)
Net weight (approx.)	kg	8,700 (19,140 lbs)		9,400 (20,680 lbs)		13,000 (28,650 lbs)		14,400 (31,680 lbs)		8,700 (19,140 lbs)
Standard color		Gray		Gray		Gray		Gray		Gray
